HC008 Controller For WS2811 WS2812B TM1809 UCS1903 TM1812 Pixel Light

Be the first to review this product

Availability: In stock

€14.33
  • OR

    Quick Overview

    HC008 Controller For WS2811 WS2812B TM1809 UCS1903 TM1812 Pixel Light is very good choice for LED Lighting projects, For big order or customized items of LED Strip, LED Controller, LED Power Supply and Other LED products, Pls feel free to contact service@kiggg.com

    We supply high quality products to Netherlands and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  We daily update new products onto our website, enjoy more quality LED lighting products with the latest technology on Kiggg.com

    HC008 Controller For WS2811 WS2812B TM1809 UCS1903 TM1812 Pixel Light

    Double click on above image to view full picture

    Zoom Out
    Zoom In

    More Views

    Details

    This RF LED Controller is suitable for WS2811, WS2812B, TM1809, UCS1903, and TM1812 addressable RGB LED STrip. It has 133 modes to control the led light, which is very cool and easy to use.

    It is widely used in advertising, stage sets, home decorations, etc.It has many advantages such as low price, easy connection and simplicity to use. It has a memory function. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through wireless remote control. It can also be used as a synchronous controller. That is to say you can synchronously control number of decoders and LED lights.

    Working temperature:-20-60℃

    Supply voltage:DC12V

    Current:<60mA

    External dimension:L137*W70*H25 mm

    Packing size:L137*W80*H54mm

    Effects Mode:133 Modes to control the led light

    Maximum control points:1024 (Low-speed) points, 2048 (High-speed) points

    Controlled IC Model: WS2811, WS2812B, TM1809, UCS1903, and TM1812

    Package Include:

    1 Piece of LED Controller

    1 Piece of RF Remote

    1 Piece of User's Manual

    HC008_LED_Controller_for_WS2811_UCS1903_tm1809_tm1812_Addressable_LED_Strip

    HC008_LED_Controller_for_WS2811_UCS1903_tm1809_tm1812_Addressable_LED_Strips

    Direction for use

    Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power. Then set the steps as follows.

    Press the "On / off" button to take the controller off before setting the menu.

    Press the “up”, “down” button one time at the time, and LED would be bright at this moment. Then press the "Mode / Speed" button to get into the menu settings screen.

    The first setting screen is for “High-speed, low-speed settings”, and the LED would display "S-HI" or "S-LO". Then press the “up” and “down” button to select the mode. (If the IC on the light bar is high-speed mode, you should choose “S-HI”, and choose “S-HI” when low-speed.) The factory default is for the high-speed mode.

    Continue to press the "Mode / Speed" button to enter the second screen-“Control points setting”. The LED display 4-digit is for the number of control points. To plus or minus the number by pressing the “up” and “down” button (Long pressing can adjust quickly). The factory default is for 50.

    After setting well, press the "On / off" button to save and exit.

    There are 4 buttons in total on the control panel, function of each button as below:

    On/off: It can turn on or turn off the output.

    Mode/Speed: Mode adjustment / speed adjustment function switch (The first LED displays H for model adjustment, shows S for the speed adjustment.)

    UP: Mode+/Speed+ button. When in mode regulator function, it is for “Mode+”. When in speed regulator function, it is for “Speed+”.

    DOWN: Mode-/Speed- button. When in mode regulator function, it is for “Mode-”. When in speed regulator function, it is for “Speed-”.

    Remarks: When power the controller, the red indicator light will be light up, and the green indicator light will be flash when press the button each time.

    magic_strip_RGB_LED_remote_controller_3

    A: Mode adjustment / speed adjustment function switch (The first LED displays H for model adjustment, shows S for the speed adjustment.)

    B: Mode+/Speed+ button. When in mode regulator function, it is for “Mode+”. When in speed regulator function, it is for “Speed+”.

    C: Mode-/Speed- button. When in mode regulator function, it is for “Mode-”. When in speed regulator function, it is for “Speed-”.

    D:On/Off button: It can open or close output.

    Remarks: When power this remote control, the red indicator light will be light up, and each press, the green light flash one time.

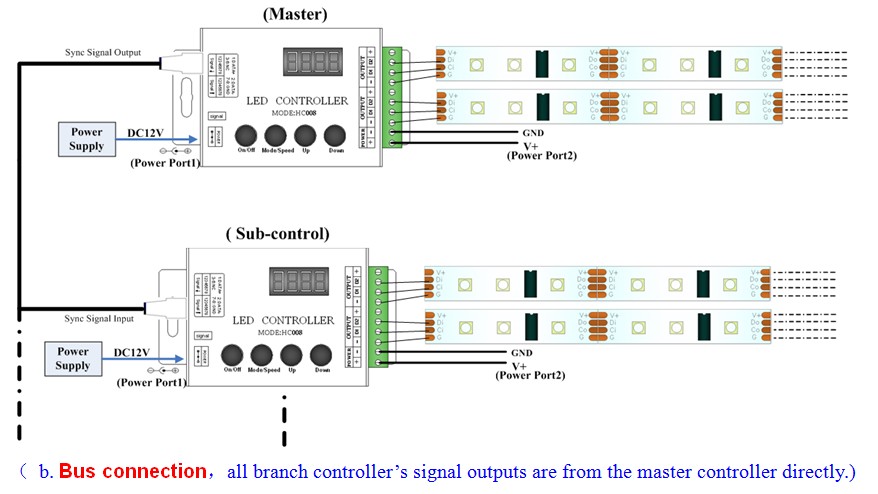

    Synchronous controller system description:

    Synchronous control system can be made of any number of controller connections. Each of the sub-controller would follow to the first master controller to achieve a permanent synchronous change. And there is not delay.

    After connecting the wiring diagram, the sub-controller need not be set. It will be in accordance with the master to controlling the speed and mode change. (That would be not synchronous when powering. You could close and open to be synchronous) When master is working, and the sub-control working well, the green signal light of sub-control would flick. The digital LED display the mode in operation.

    Standard color changes as follows:

    magic_strip_RGB_LED_remote_controller_4


    Notes

    1. Supply voltage of this product is DC12V, never connect to others or AC220V.
    2. Wireless Remote Control is powered by DC12V battery, if Stretch the antenna, it would Control better.
    3. Lead wire should be connected correctly according to grade that connecting diagram offers.
    4. If the load is more, by way of port 2 to connect the power will be better.
    5. This product is not to overload;
    6. Warranty of this product is 1 year, but exclude the artificial situation of damaged or overload working.

    HC008_LED_Controller_for_WS2811_UCS1903_tm1809_tm1812_Addressable_LED_Strips_light

    HC008_LED_Controller_for_WS2811_UCS1903_tm1809_tm1812_Addressable_LED_Strips_lights

    HC008_LED_Controller_for_WS2811_UCS1903_tm1809_tm1812_Addressable_LED_Strips_lights_wholesale



    CE and RoHS approved
